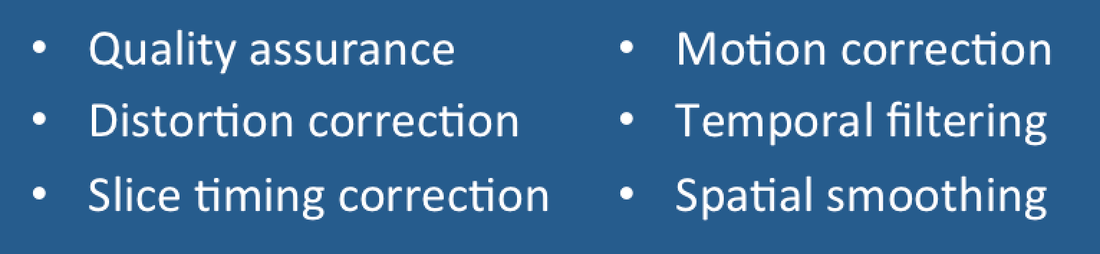

Prior to subjecting raw fMRI data to any type of statistical analysis, most of the following pre-processing steps are commonly performed.

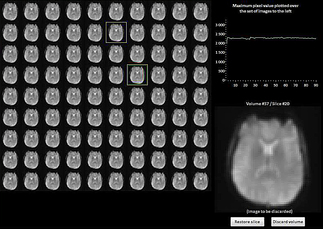

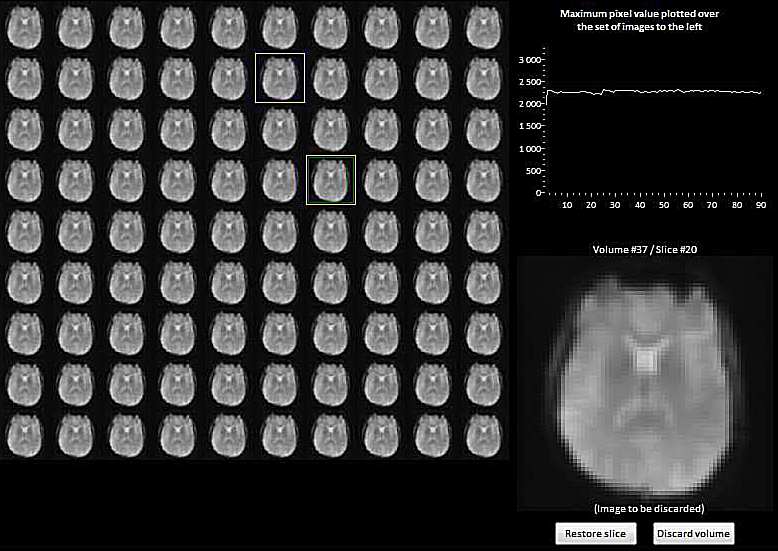

__Quality Assurance: Inspection of source images__.**Individual slices in an fMRI acquisition commonly suffer from random variations in average signal intensity, noise spikes, ghosts, and data glitches. These may result from physiological sources (patient motion, respiration, cardiac pulsations, anxiety, drowsiness, drugs) or from the scanner itself (field inhomogeneities, eddy currents, gradient heating, electronics). If unrecognized and included in the data analysis, these may spoil the entire experiment. A quick visual review of all source images together in montage mode is highly recommended to search for and exclude ("**

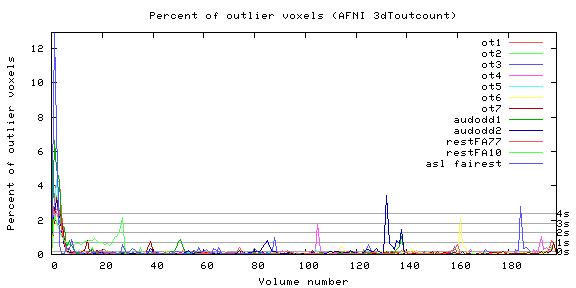

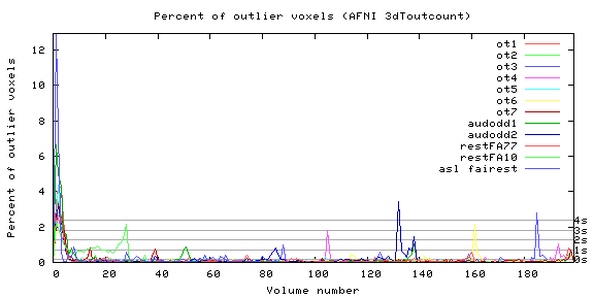

*") aberrant slices that appear too bright, too dark, or contain artifacts. More sophisticated graphical and semi-automated methods to identify outlier data are also available.*

**scrub**

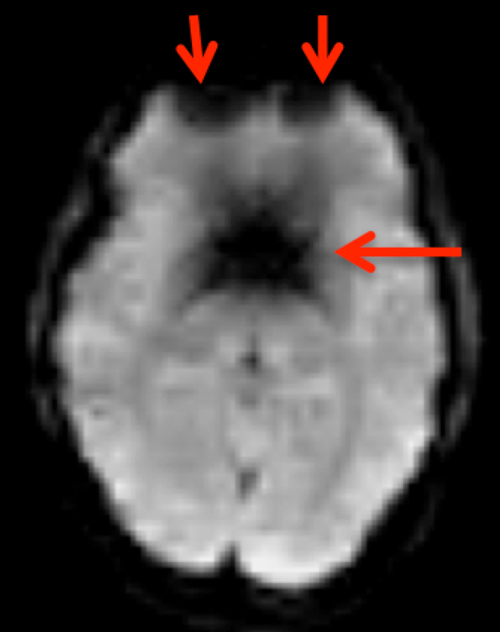

. Common fMRI/BOLD sequences acquire gradient echoes and hence are sensitive to magnetic inhomogeneity (T2*) effects. These cause spatial distortions and signal dropout especially near the skull base, typically affecting the anterior frontal and temporal lobes.Distortion correction and "Field mapping" methods (described in the unwarpingAdvanced Discussion) are available to reduce these distortions. Although these techniques may be required for sophisticated neuropsychological experiments, they are not commonly used for basic eloquent cortex mapping in clinical fMRI studies. |

__. Most fMRI studies acquire one slice at a time, meaning that the signal recorded from one slice may be offset in time by up to several seconds when compared to another. The situation is even further complicated depending on whether the slices have been acquired in sequential (1,2,3,4,5,6...) or in interleaved (1,3,5,..2,4,6...) order and whether simultaneous multi-slice imaging has been employed. Although slice timing differences may not be important for simple block design experiments, they can impart considerable errors in rapid, event-related fMRI studies if not accounted for.__

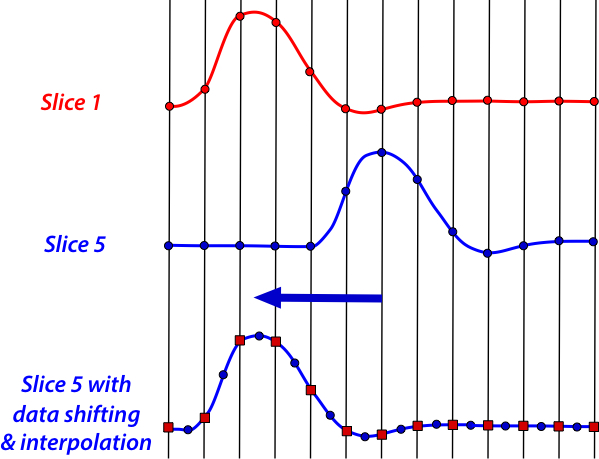

**Slice timing correction**Two basic strategies have been developed for slice timing correction.

*is the most commonly used method, where recorded points are moved to reflect their proper offset from the time of the stimulus. This method requires interpolation of points to fit the fixed,***Data shifting***TR*-based timing grid and thus produces some blurring and degradation of the data. An alternate (post-processing) strategy is*, where the expected location of the***model shifting***is varied, treating slice location as an additional independent variable in the subsequent statistical analysis. Sometimes temporal derivatives of the HRF are also incorporated in the model to improve accuracy.***hemodynamic response function (HRF)**__. Head motion is the largest source of error in fMRI studies, and a variety of strategies have been developed to cope with this problem. Immobilization of the head using padding and straps is essential; even more rigid restrictions using bite bars and masks are occasionally employed. Proper coaching and training of the subject prior to imaging is important. Prospective motion correction using navigator echoes may be performed but more commonly motion correction is done retrospectively.__

**Motion Correction**The standard retrospective motion correction method considers the head as a

*with three directions of translation (displacement) and three axes of rotation. A single functional volume of a run is chosen as the reference to which runs in all other volumes are aligned. An iterative procedure is performed in which each volume is rotated and aligned with the reference, with the goal to minimize a cost function (such as the mean-squared difference). This iterative adjustment terminates once no further improvement can be achieved. All major fMRI analysis packages produce line plots allowing visual inspection of how translation and rotation parameters change from volume to volume (see figure above).***rigid body**

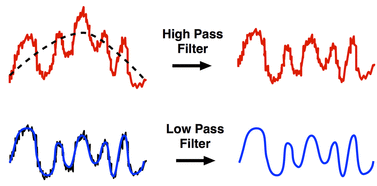

**Temporal Filtering****.**fMRI data nearly always exhibit slow wandering of the baseline signal over time as well as rapid fluctuations due to noise. The removal of low frequency drifts is known as

*. Detrending may be accomplished using either*

**detrending***after Fourier transformation or by time-domain averaging methods. Alternatively, gradual drifts can be removed later in the data analysis pipeline by adding a set of confound predictors (such as a discrete cosine transform basis set) to account for low-frequency fluctuations. High-frequency signal fluctuations (AKA "noise") can be removed by*

**high-pass filtering***. Low-pass filtering is generally not recommended for most studies, however, since it may distort estimation of individual HRFs and reduce the fMRI signals of interest.*

**low-pass filtering**

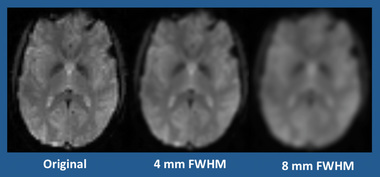

**Spatial Smoothing****.**Spatial smoothing is the averaging of signals from adjacent voxels. This improves the signal-to-noise ratio (SNR) but decreases spatial resolution, blurs the image, and smears activated areas into adjacent voxels. The process can be justified because closely neighboring brain voxels are usually inherently correlated in their function and blood supply. The standard method is to convolve ("multiply") the fMRI data with a 3D Gaussian kernel ("filter") that averages signals from neighboring voxels with weights that decrease with increasing distance from the target voxel. The optimal kernel size is disputed, depending on factors such as slice thickness and in-plane resolution and the need for spatial separation of small activation regions. In practice, the

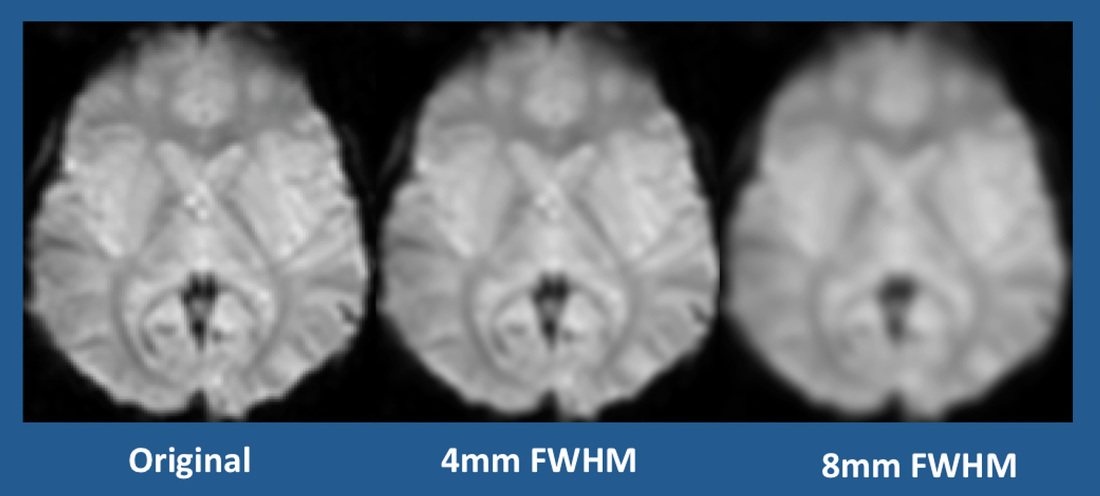

*value of the Gaussian spatial filter is typically set to about 4-6 mm for single subject studies and to about 6-8 mm for multi-subject analyses.*

**full width half maximum (FWHM)**### Advanced Discussion (show/hide)»

**Additional Comments About fMRI Pre-Processing**

**Quality Assurance**Although all slices should be quickly assessed visually, the

*initial*slices of an fMRI acquisition should be especially scrutinized. This is the time when tissue magnetization may not have not yet reached a steady-state equilibrium and signal intensity may appear artificially high. Most scanners perform one or more “dummy scans” and discard the first 3-5 slices, but this is worth checking. For some experiments it may be desirable to censor even more initial slices (e.g., to allow a subject to acclimatize to loud scanner sounds). Graphical methods (illustrated below) permit rapid identification of outlier data. High-signal outliers result in false areas of activation; low-signal outliers create false areas of deactivation. Additional time series diagnostics include mean voxel intensity, variance of voxel intensity, and temporal signal-to-noise per slice.An option called "Mean Intensity Adjustment" (or one with similar wording) is available in most fMRI software. Its purpose is to remove global fluctuations in average background signal from slice to slice. Before the current era of fully digital RF multi-transmit and receiver chains, this option was more widely used, but is now largely unnecessary for modern scanners operating at 3T or below. Intensity normalization may still be needed for fMRI studies at 7T or higher where RF-inhomogeneities can be more problematic.

**Distortion Correction**__. Basic rapid field mapping is commonly performed as a normal part of automated prescan procedures. In the simplest case a low-resolution dual echo sequence with relatively short__

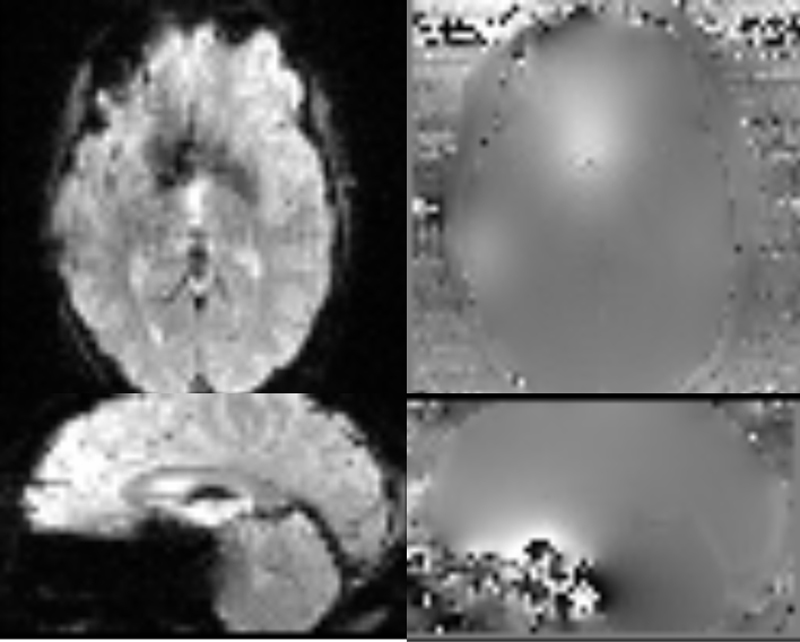

**Field mapping and unwarping***TE's*is first performed, with computation of magnitude and phase-difference images. The phase-difference images require

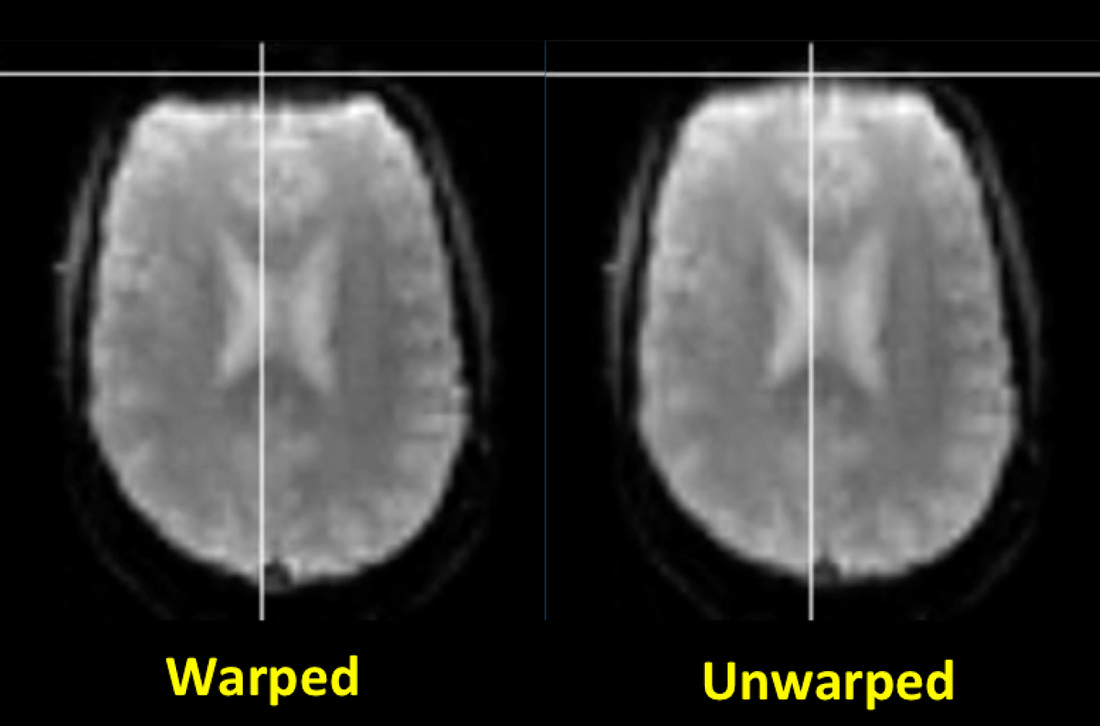

*as all phase measurements (however large) are "wrapped" (compressed) over the range of 0°−360°. After phase unwrapping field map values are used to calculate corrective pixel shifts in the phase-encode direction, a process known as*

**unwrapping***(not to be confused with unwrapping above!). Because field map artifacts and noise create problems, some spatial smoothing (often Gaussian) is typically performed as well as masking to exclude voxels outside of the brain. More sophisticated field mapping and unwarping techniques include those that continuously update during data acquisition.*

**unwarping**__. T2*-dephasing creates inhomogeneity in the__

*Z*-shimming*z-*(slice-select)-direction as well as in plane (

*xy*-direction). To restore the signal a compensating gradient along the

*z*-axis is applied to be sure the

*k*-space trajectory returns to the origin at time

*TE*. As commonly implemented, images are collected using 3-4 different positive and negative

*z*-gradients applied immediately after the RF-pulse and then combined using a square root sum of squares approach. The method may also be applied to reduce in-plane artifacts in the phase-encode direction, and a 3D-implementation has also been developed. A major disadvantage of

*z*-shimming is the time penalty, meaning a longer

*TR*with fewer slices and decreased temporal resolution. Additionally, portions of the original image not suffering from susceptibility-induced signal loss can be dephased by the z-shimming gradients and potentially made worse.

It should be noted that distortion correction techniques such as field mapping, unwarping, and

*z*-shimming cannot restore fMRI signals lost due to dephasing. These techniques merely attempt to reassign recorded signals to the proper points in space from which they arose.

**Slice-Timing Correction**Interpolation of the time-shifted data points may be performed by nearest neighbor, tri-linear, multipoint spline, or sinc approximations. Nearest neighbor and linear interpolation are the fastest, but introduce more smoothing artifacts; cubic/multipoint B-spline or (Hanning-windowed) sinc methods are generally preferred. These latter techniques tend to spread the artifact out over a wider range of nearby voxels. Whether to do slice time-correction as a pre-processing step vs post-processing HRF model shifting remains in dispute. Likewise, if the pre-processing option is chosen, whether to do slice-timing correction before or after motion correction is also not agreed upon, and may depend on the expected degree of motion as well as slice order.

**Motion Correction**The iterative minimization procedure used for fMRI motion correction schemes is typically a nonlinear least squares routine (e.g., Levenberg-Marquardt). Possible errors in this process may result from finding only a local (rather than global) minimum of the cost function, leading to suboptimal results. Once motion parameters for realignment have been determined, they are applied to create a new 3D motion-corrected data set. Creation of the corrected data set requires spatial interpolation, as the new data points typically fall in between the original uncorrected data points. This process may be computationally-intensive, so usually some combination of (fast) linear interpolation is used during the initial motion correction steps, followed by a more time-consuming interpolation method (such as windowed sinc) for the final spatial transformation.

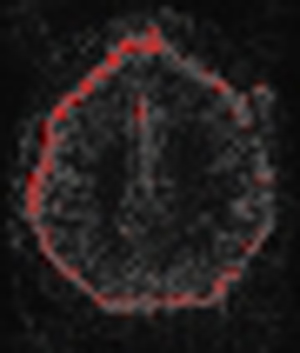

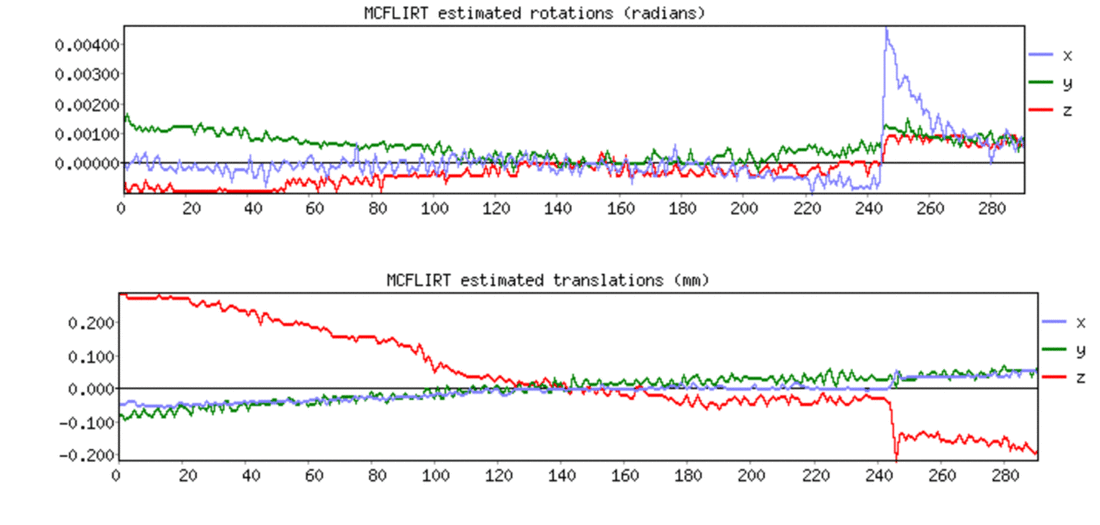

Typically head motions are relatively small (<2 mm) during normal fMRI experiments, so the assumptions underlying this rigid body approach are justified. However, sudden abrupt head motion (as seen near volume 245 in the figure above) will violate these conditions and may not produce an appropriate correction for motion.

Rigid body transformations cannot compensate for non-linear effects. These include field inhomogeneity effects, motion during slice acquisition, interpolation artifacts, and spin-excitation history effects. Field inhomogeneity effects may be the most important. Even though rigid head motion can be corrected in image space, head displacements affect magnetic field homogeneity and shimming, so even with perfect realignment some motion-related errors persist. These additional sources of residual motion error are often referred to as the

Typically head motions are relatively small (<2 mm) during normal fMRI experiments, so the assumptions underlying this rigid body approach are justified. However, sudden abrupt head motion (as seen near volume 245 in the figure above) will violate these conditions and may not produce an appropriate correction for motion.

Rigid body transformations cannot compensate for non-linear effects. These include field inhomogeneity effects, motion during slice acquisition, interpolation artifacts, and spin-excitation history effects. Field inhomogeneity effects may be the most important. Even though rigid head motion can be corrected in image space, head displacements affect magnetic field homogeneity and shimming, so even with perfect realignment some motion-related errors persist. These additional sources of residual motion error are often referred to as the

*and may be addressed in part by unwarping (described above).***residual variance**

**Temporal Filtering**Low frequency drifts in fMRI data are very common, and if not accounted for, will severely reduce the power of the statistical analysis. They will also invalidate event-related averaging, which assumes a stationary level of signal over the course of an experiment. Accordingly, removing these drifts is a mandated step for every fMRI study. This must be done carefully, however, as true condition-related signal changes may be inadvertently removed by this process if improperly applied.

Typically, low frequency drifts are removed as part of the preprocessing pipeline. They may also be removed during the post-processing/statistical analysis phase by incorporating them as “nuisance predictors” in the

If the pre-processing route is chosen, then a Fourier frequency filtering method is typically employed. Here, the fMRI signal time course for a voxel is transformed into the frequency domain using a

Typically, low frequency drifts are removed as part of the preprocessing pipeline. They may also be removed during the post-processing/statistical analysis phase by incorporating them as “nuisance predictors” in the

*. Both approaches are commonly used (although not together) with generally similar results.***General Linear Model (GLM)**

If the pre-processing route is chosen, then a Fourier frequency filtering method is typically employed. Here, the fMRI signal time course for a voxel is transformed into the frequency domain using a

*. A certain group of low frequencies (say 1-3 cycles) is removed, and the filtered data retransformed back into the time domain.***Fast Fourier Transform (FFT)**
Because FFT frequency filtering does not work well with purely linear trends, several fMRI software packages first remove linear trends in the time domain with a simple regression tool before transforming into the frequency domain. Additionally Fourier-based filtering techniques may also introduce spurious autocorrelations into the data.

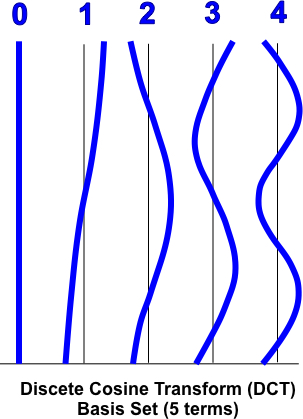

Accounting for low frequency drifts can also be done as a post-processing step, including them as confound predictors in the GLM. Some investigators prefer this approach. In brief, 3-5 additional columns are added to the GLM design matrix ( X) composed of low-frequency waves. These may be a low frequency Fourier basis set of sines and cosines plus a constant linear trend term or a slightly more sophisticated (but closely related) set.discrete cosine transform (DCT) |
