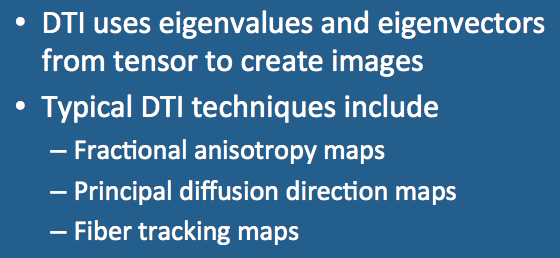

Diffusion tensor imaging (DTI) comprises a group of techniques where calculated

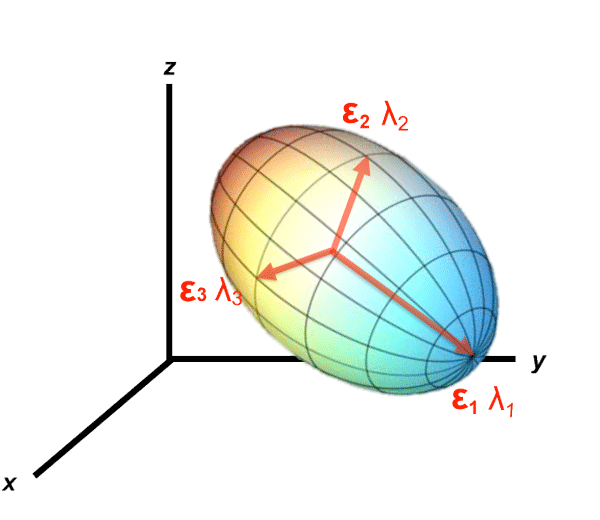

(eigenvaluesλ1, λ2, and λ3) and (eigenvectors, ε1, and ε2) are used to create images reflecting various diffusion properties of a tissue. "Regular" diffusion-weighted (DW) imaging produces images based on only the sum or average of the eigenvalues. The sum of the eigenvalues (ε3λ1+λ2+λ3) is called the , while their average (= trace/3) is called the trace or mean diffusivity. apparent diffusion coefficient (ADC) |

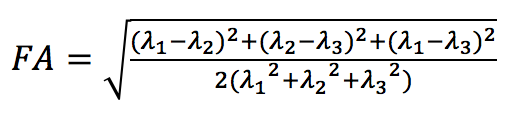

*FA*varies between 0 and 1. For perfect isotropic diffusion,

*λ1 = λ2*=

*λ3*, the diffusion ellipsoid is a sphere, and

*FA*= 0. With progressive diffusion anisotropy, the eigenvalues become more unequal, the ellipsoid becomes more elongated, and the FA → 1. The

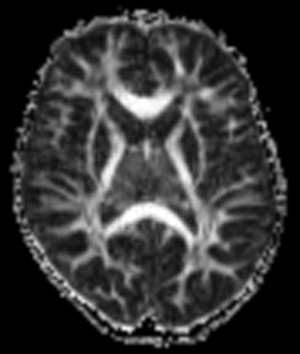

**is a gray-scale display of**

*FA map**FA*values across the image. Brighter areas are more anisotropic than darker areas.

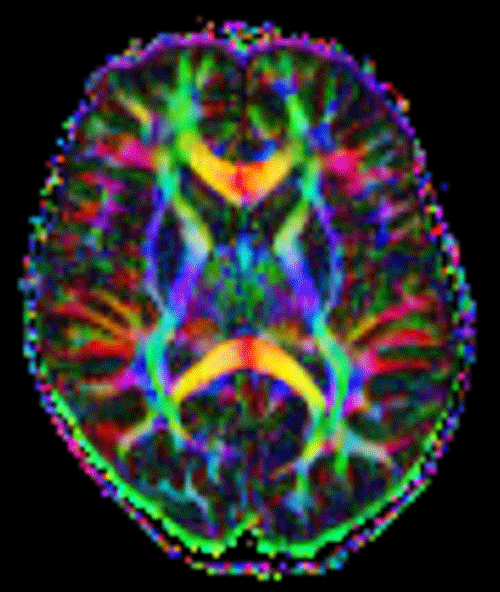

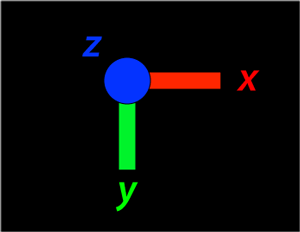

Principal Diffusion Direction MapThis is a map that assigns colors to voxels based on a combination of anisotropy and direction. It is also called the , colored fractional anisotropy map or fiber direction mapdiffusion texture map. The color assignment is arbitrary, but the typical convention is to have the orientation of the principal eigenvector () control hue and fractional anisotropy (ε1FA) control brightness. Specifically, if makes angles ε1α, β, and γ with respect to the to the laboratory x-, y-, and z-axes, the color scheme might be apportioned in the ratios: Red =
FA • cos αGreen = FA • cos βBlue = FA • cos γ |

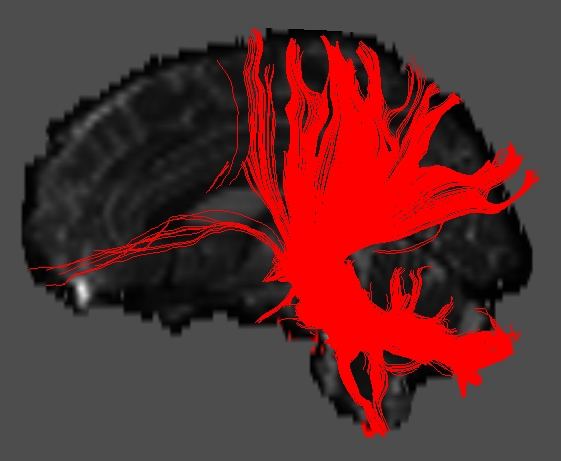

Fiber Tracking MapAxonal tracts are commonly mapped using a deterministic method known as
. In this method the user selects "seed voxels" in a certain area of the brain and automated software computes fiber trajectories in and out of that area. This is accomplished by following the primary eigenvector ( FACT (fiber assignment by continuous tracking)) in each voxel until it encounters a neighboring voxel, at which time the trajectory is changed to point in the direction of the new eigenvector.ε1 |

### Advanced Discussion (show/hide)»

Although DTI and fiber tracking methods are proving valuable in the research realm for *groups* of subjects, I would caution their application for clinical diagnosis in *individual patients*. First, considerable variation of regional FA values exists among subjects as a function of age, sex, location, and MR technique. To reduce errors due to crossing, kissing, or branching fibers, a minimum of 20 diffusion directions should be obtained (with 64 or more preferred). If FA values are compared to normal data bases, it is critical that multiple comparison (e.g. Bonferroni) corrections be performed to avoid spurious conclusions of statistical significance when none exist.

Tractography results are even more variable than regional FA measurements and are highly dependent on the exact location of the initial seed points and tracking algorithms employed. An arbitrary starting point must be selected, whose exact location, size and orientation significantly affects results. Tractography algorithms differ in detail between vendors and arbitrary decisions must be made as to when tracking should stop. Termination criteria may be based on FA value (terminate tracking when FA falls below a certain value, e.g., 0.25), turning angle (terminate tracking when angle between adjacent voxels exceeds a certain value, e.g. 40°), or minimum fiber length (do not display fibers shorter than a certain length, e.g. 2 cm). Anyone who plays around with setting seed locations and termination parameters can easily manipulate visual displays of fiber tracts.
