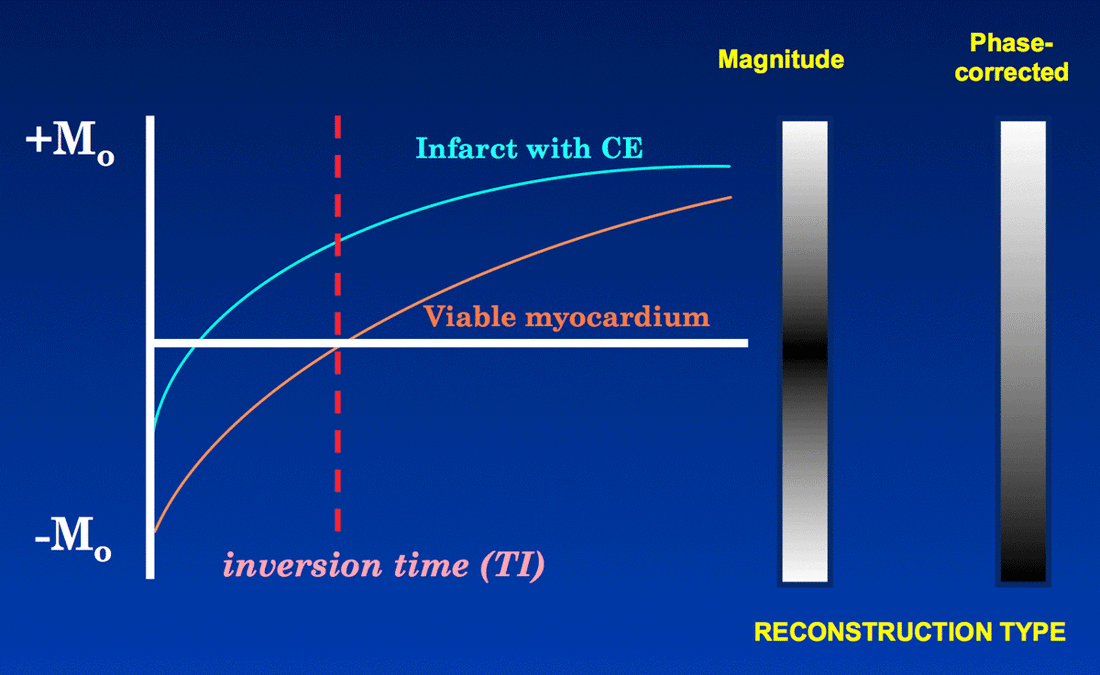

Inversion recovery (IR) sequences typically employ magnitude reconstruction to translate the MR signal into pixel intensity. In this method pixel brightness depends only on the magnitude of a tissue's longitudinal magnetization, not its polarity. In other words, two tissues whose magnetization at time TI point in equal but opposite directions along the z-axis will be rendered the same shade of gray and thus be indistinguishable.
Advanced Discussion (show/hide)»
The technical details of creating PSIR images vary from vendor to vendor. All methods require creation of baseline phase maps by obtaining reference data at a time when longitudinal magnetization has fully recovered. For CMR this is typically means acquiring reference data during an R-R interval in which no inversion or other imaging pulses have been applied. Complex weights are then computed for each coil and applied to the data. Further processing involving spatial smoothing, seed growing, noise removal, and surface coil intensity normalization may also be embodied in the final PSIR image.
Kellman P, Arai AE, McVeigh ER, Aletras AH. Phase-sensitive inversion recovery for detecting myocardial infarction using gadolinium-delated hyperenhancement. Magn Reson Med 2002; 47:372-383.
Huber AM, Schoenberg SO, Hayes C, et al. Phase-sensitive inversion-recovery MR imaging in the detection of myocardial infarction. Radiology 2005; 237:854-860.
Juan LJ, Crean AM, Wintersperger BJ. Late gadolinium enhancement imaging in assessment of myocardial viability. Techniques and clinical applications. Radiol Clin N Amer 2015; 53:397-411.
Moran PR, Kumar NG, Karstaedt N, Jackels SC. Tissue contrast enhancement: image reconstruction algorithm selection of TI in inversion recovery MRI. Magn Reson Imaging 1986; 4:229-235.
Park HW, Cho MH, Cho ZH. Real-value representation in inversion-recovery NMR imaging by the use of a phase-correction method. Magn Reson Med 1986; 3:15-23.
